Astra (Ø 305 mm)

Portable Miter Saw

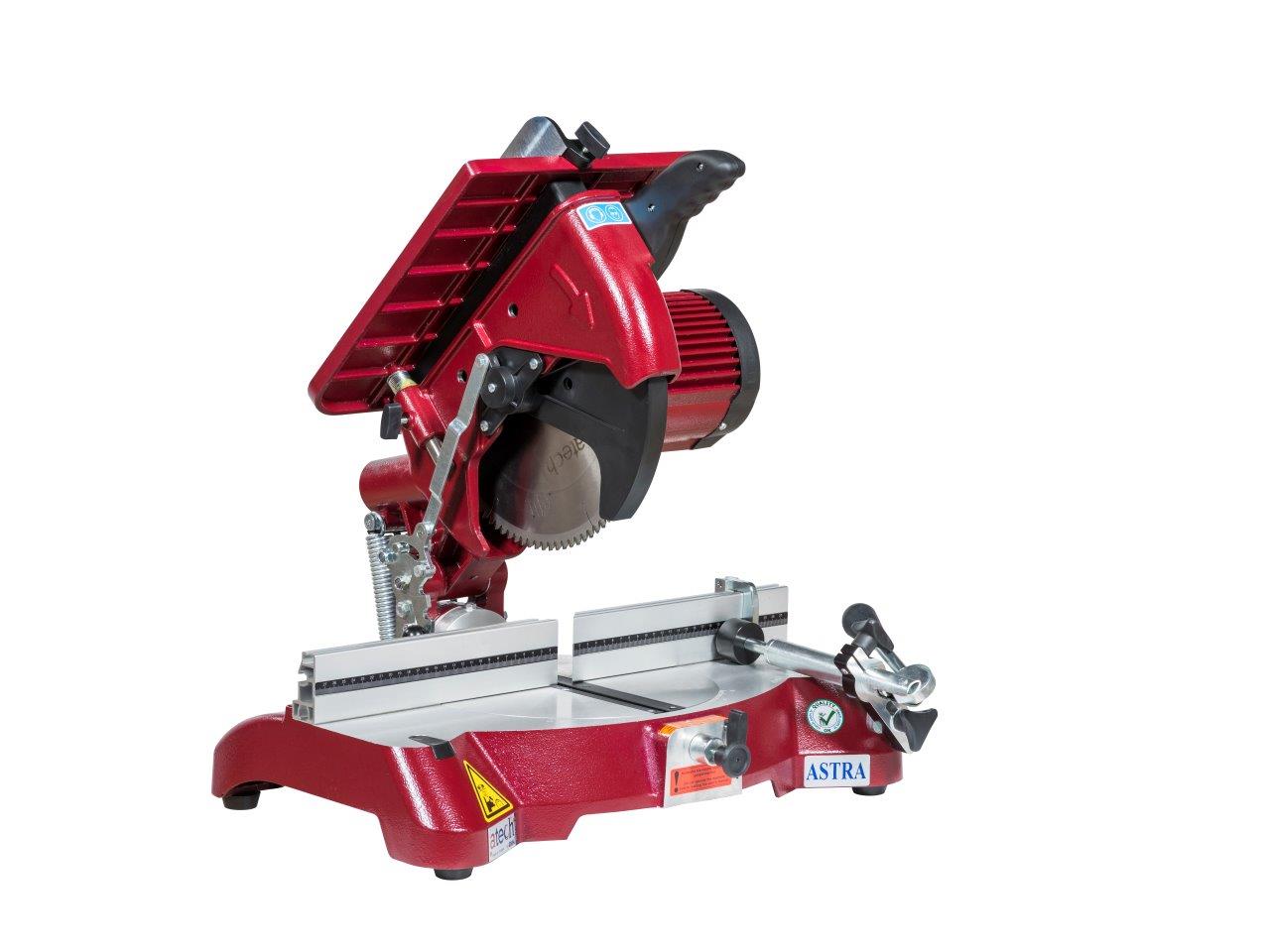

Astra_2

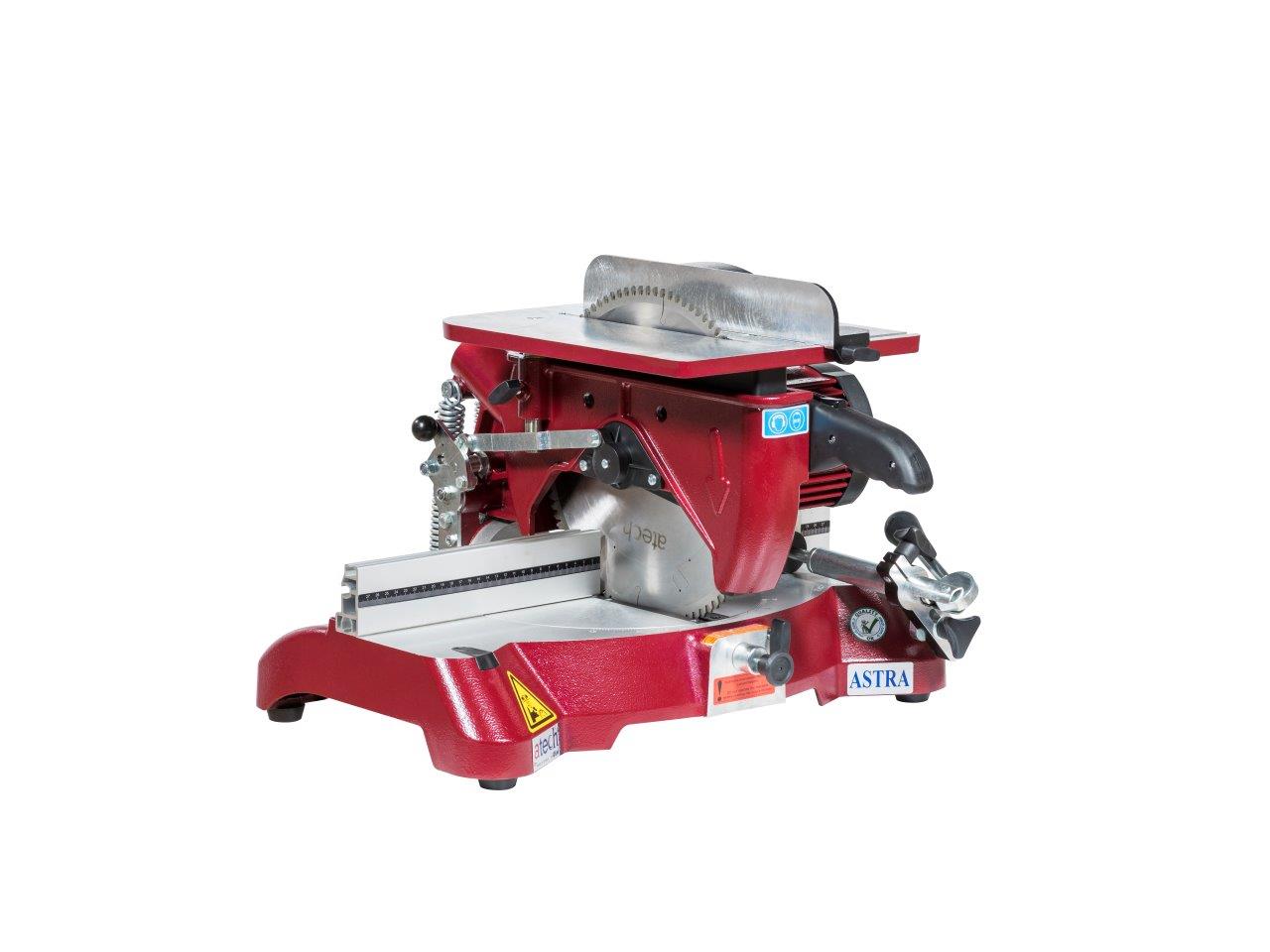

Astra_1

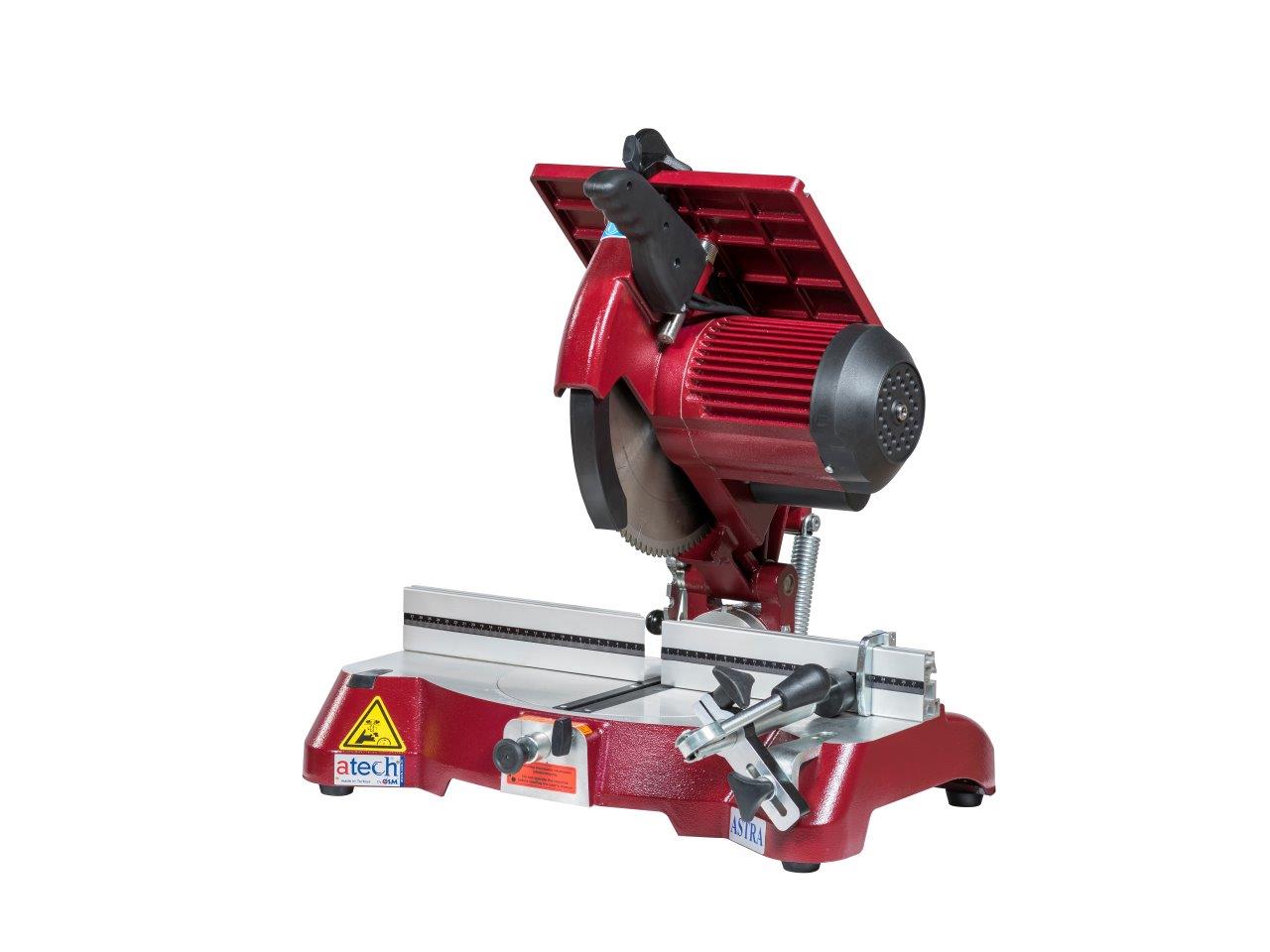

Astra_3

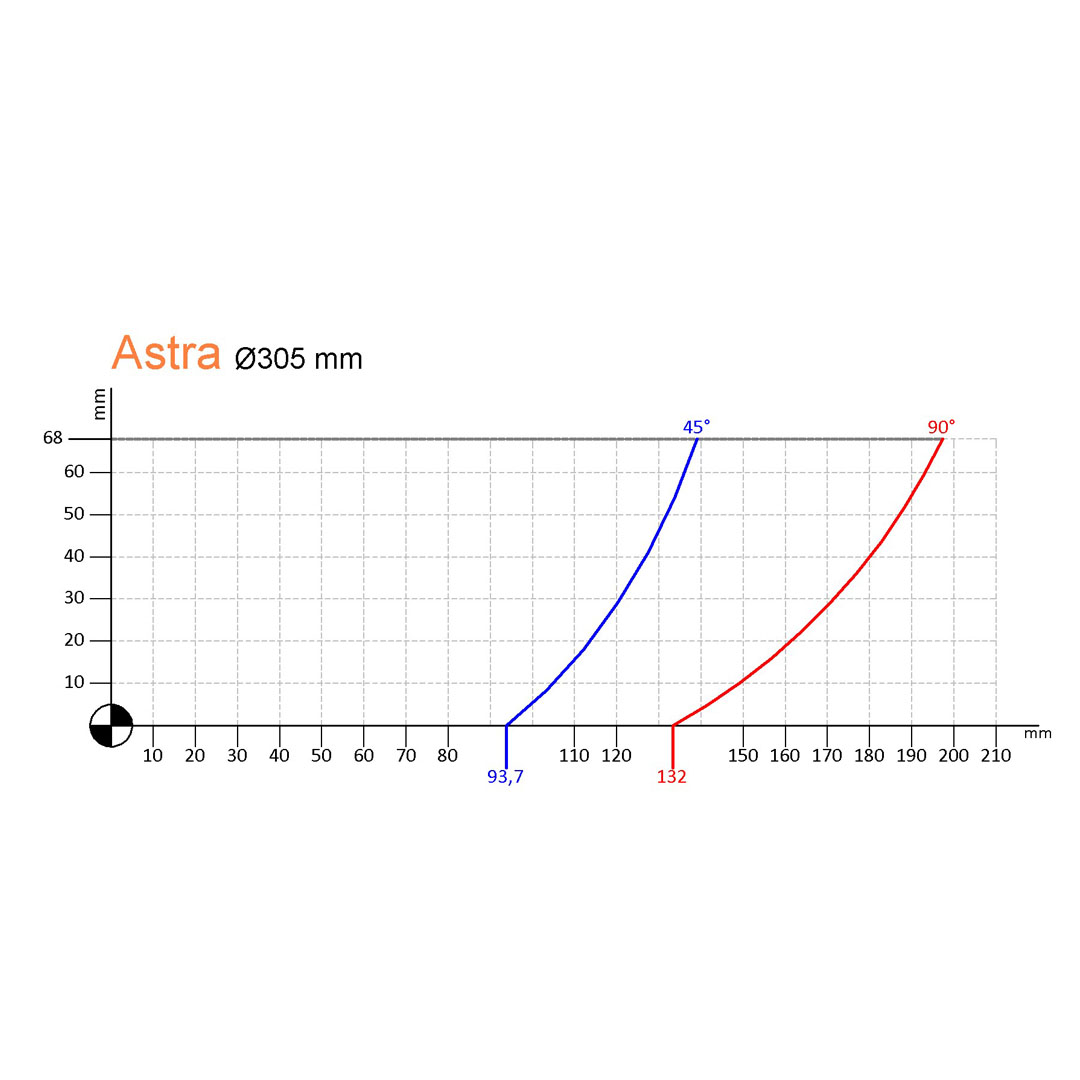

Astra Kesme Diagramı

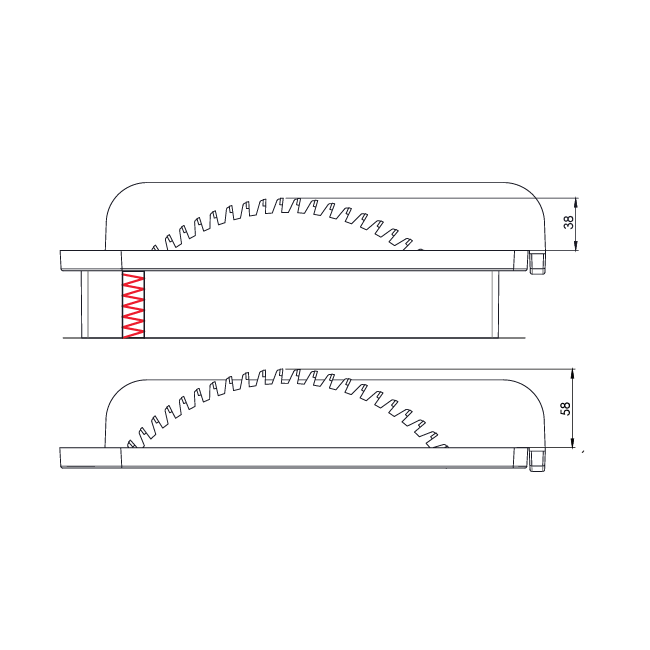

Astra Kesme Diagramı 2
Portable Miter Saw Ø 305 mm
Aluminyum Profil PVC Profil Ahşap Profil

Astra 305mm Portatif Gönye Kesim Makinası Katalog

  • Zero surface avaiding insertion of sawdust
  • Cutting at standard angles and any intermediate angles
  • Made by special aluminium (sigma) profile support miter system
  • User friendly clamp. Can be tilted to any direction,
    tightened with one move

Engine Power : 0,8kW,230V,50-60 HZ / 1,2kW 400V
Sizes of Saw : D=305 mm,d=30-32 mm
Speed of Saw : 3000 r.p.m.
Dimensions : 62x49x41 cm
Total Weight : 32 kg

  • 1 pc. mechanic clamp
  • 1 unit support

  • Saw blade
  • Additional profile in desired lenght
  • Clamp set
  • 3-Phase motor
