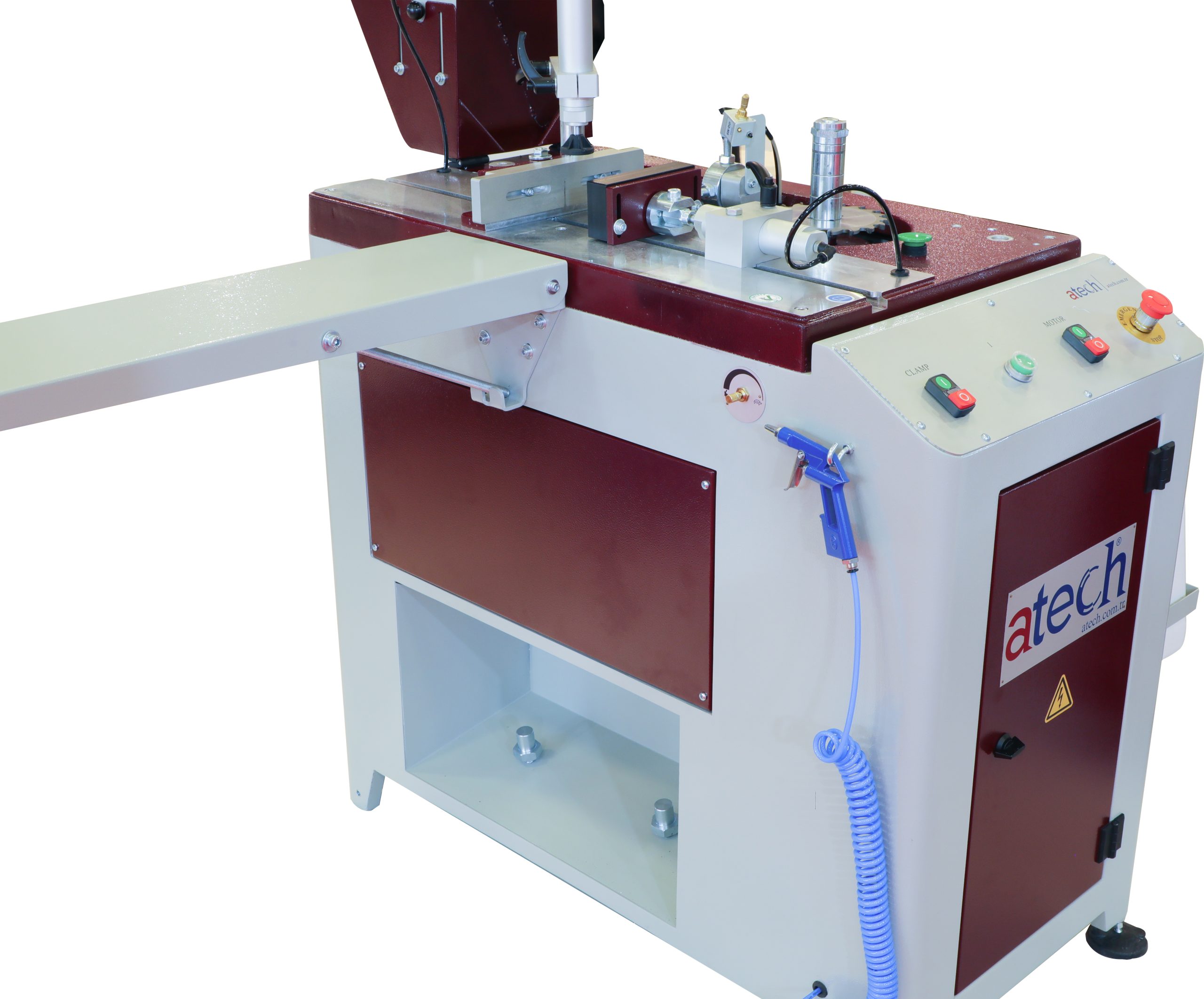

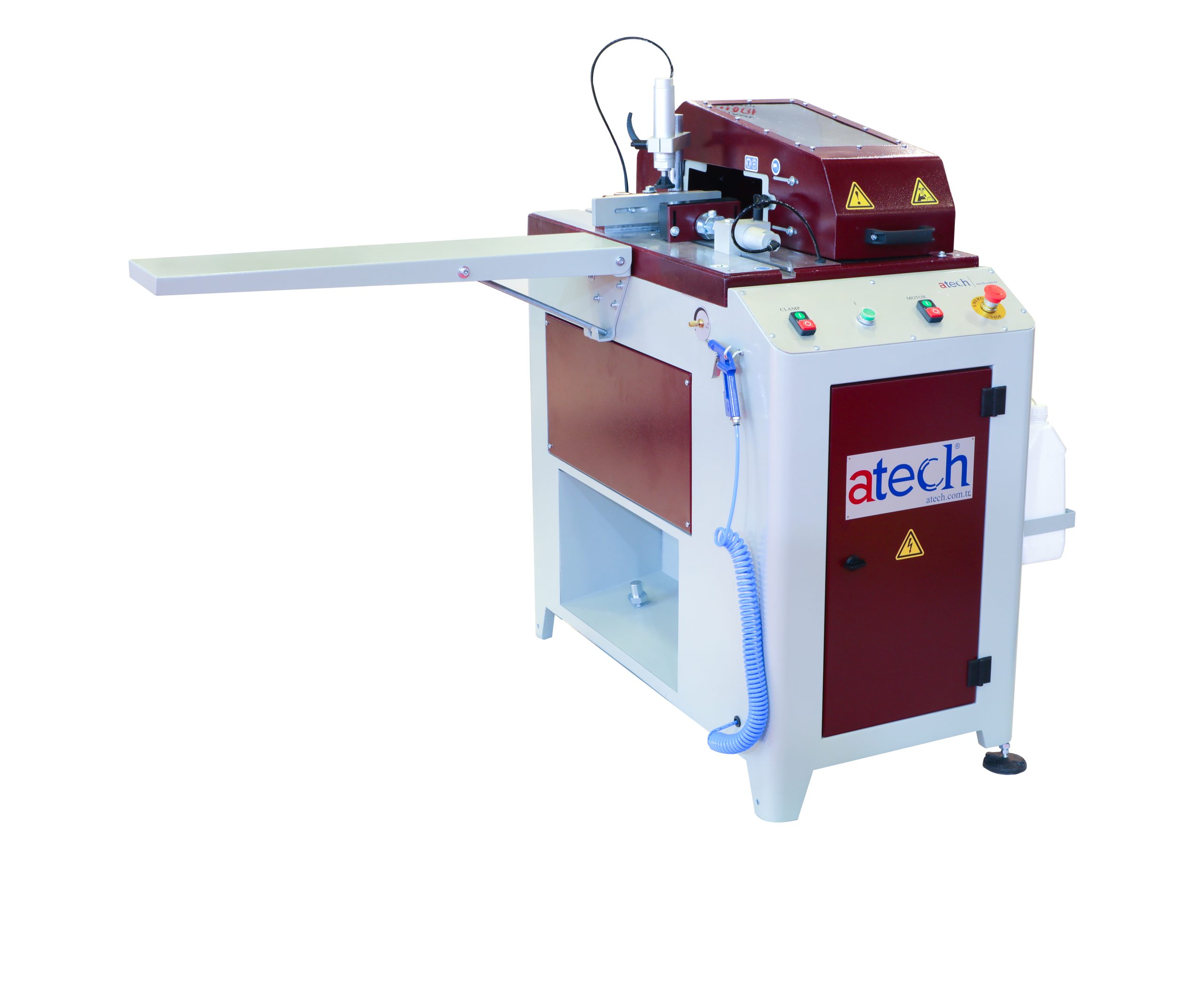

Automatic and Angle End Milling Machine

  • Designed to notch aluminium & PVC profiles
  • Fast tool changing system enables blades shift rapidly hydro-pneumatic cutting unit enables to adjust the speed of the blade regarding the type of profile
  • Returns to the starting point of the process automatically
  • Profile resting system adjustable to 4 different kinds of profiles
  • PVC and aluminium mullion profiles can be processed within the range of +45° and -45°

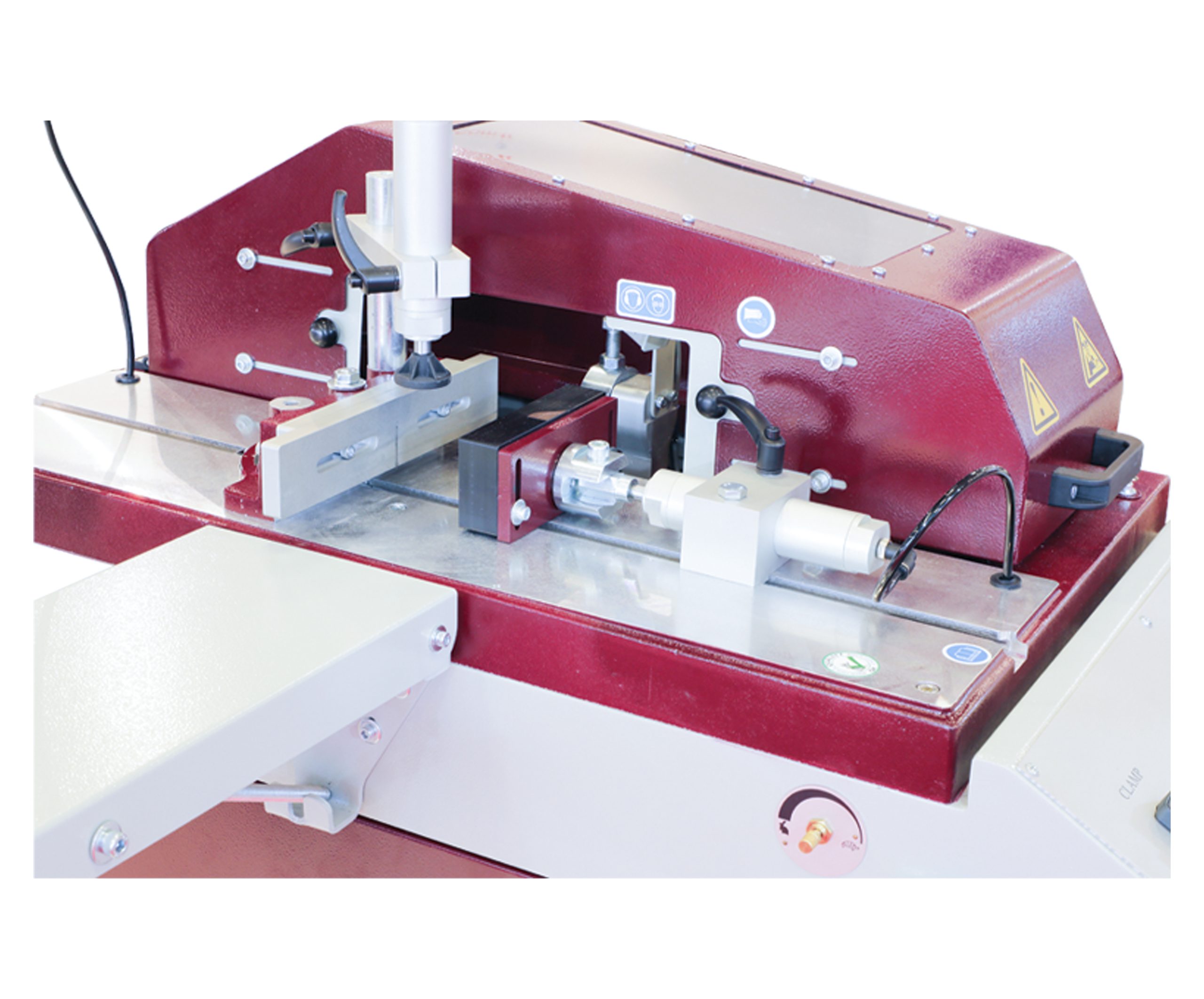

  • Guard cover provides a safer working environment
  • Storage for spare Tools
  • Robust Machine body

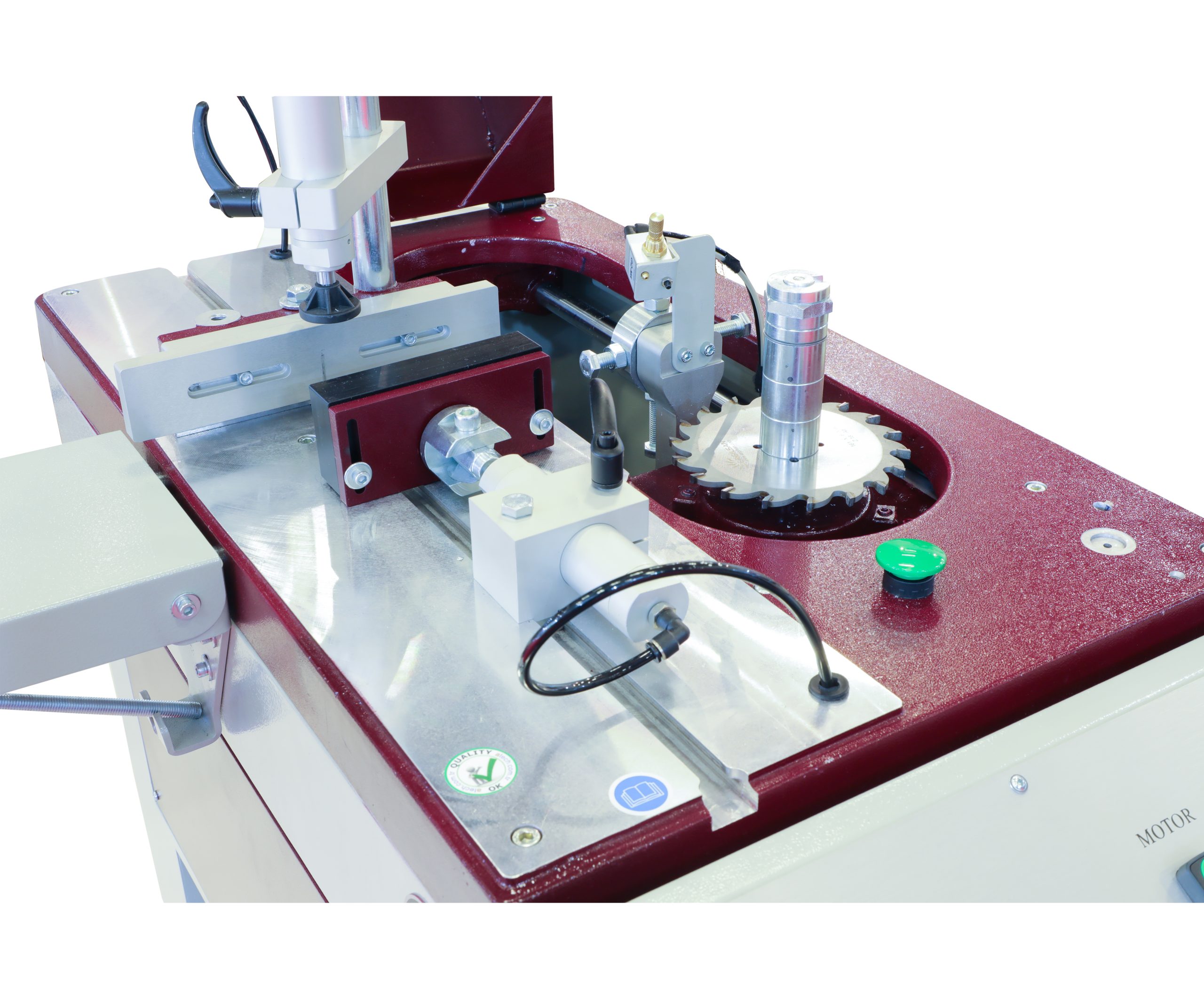

  • The diameter of attachable blade is 180 Ø
  • Notching dimensions H=100 mm x W=225 mm



Motor: 1.1 kW/1.5 HP,  380 V –  50/60Hz
Saw Dimension: Dmax: 180mm / d= 30 mm
Saw: 3000 r.p.m
Bar / Air Cons.: 6-8 Bar – 25 lt./min.
Profile Height: 100 mm
Packing Size: 120x82x141 cm
Machine Size: 108x151x126 cm
Machine Kg: 140

  • 1x horizontal clamp
  • 1x vertical clamp
  • Airgun
  • Profile resting conveyor

  • Spray mist lubrication system
  • Mould connection fixture for special profiles
  • Saw blade kit
