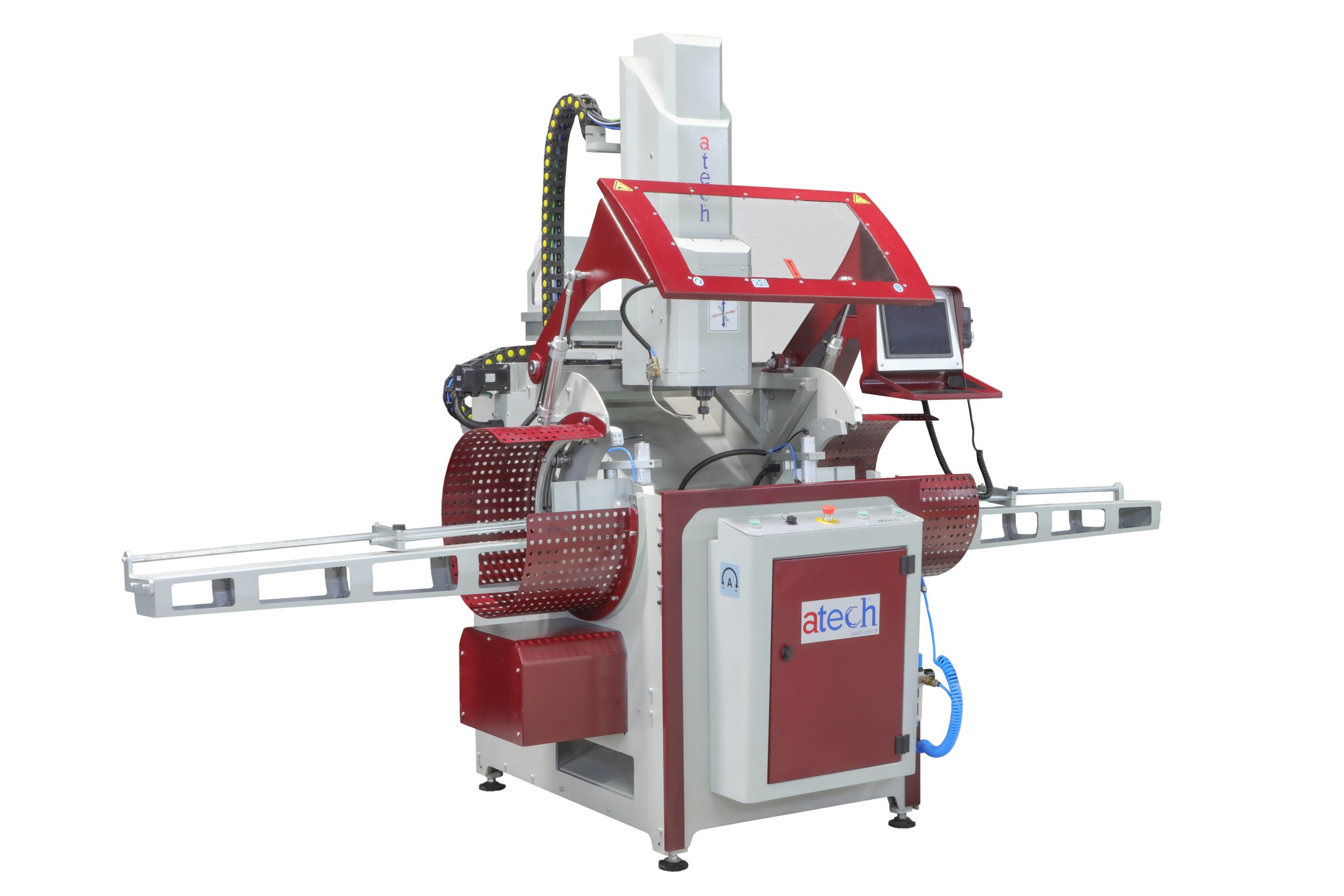

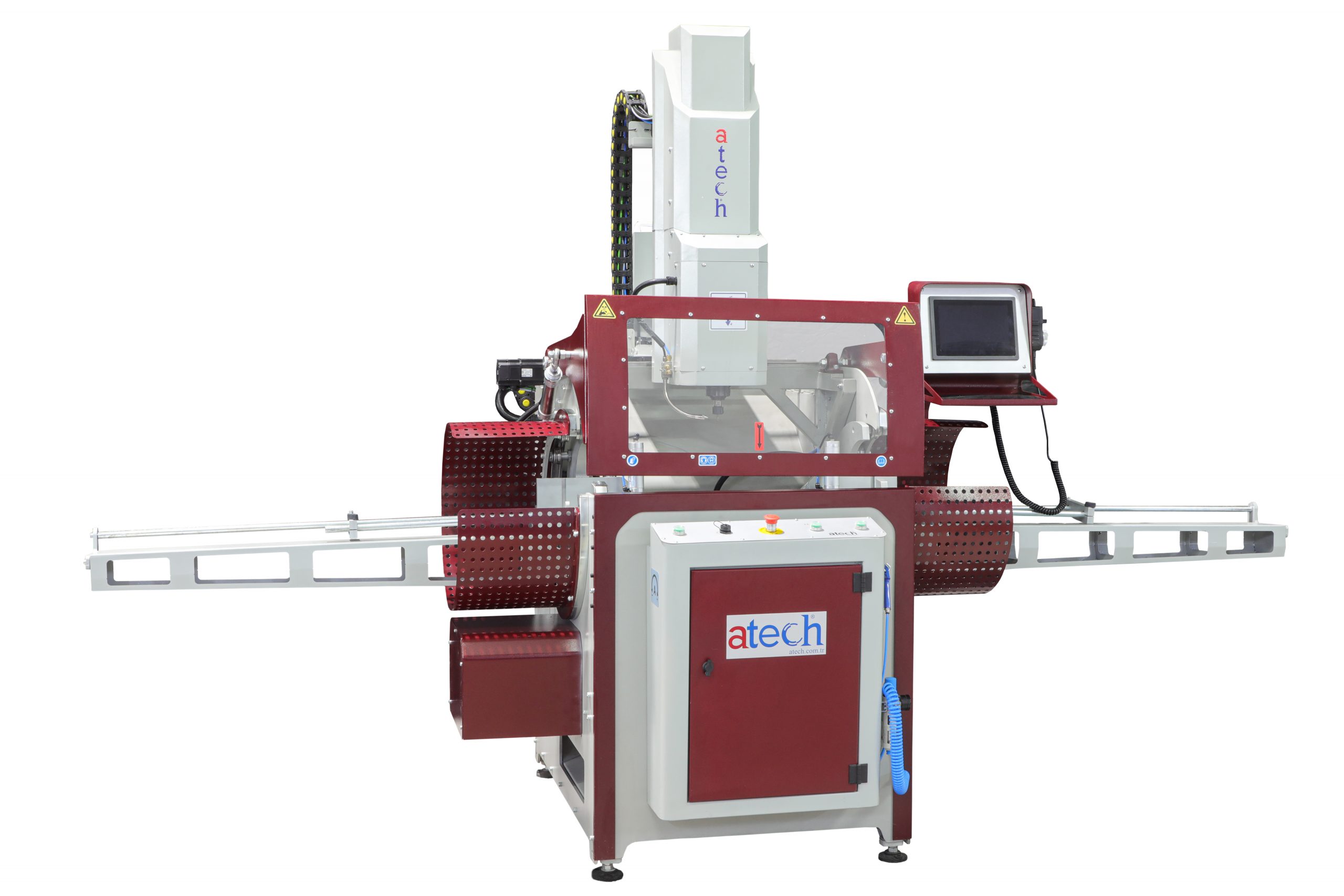

4 Axis, CNC Controlled Copy Router

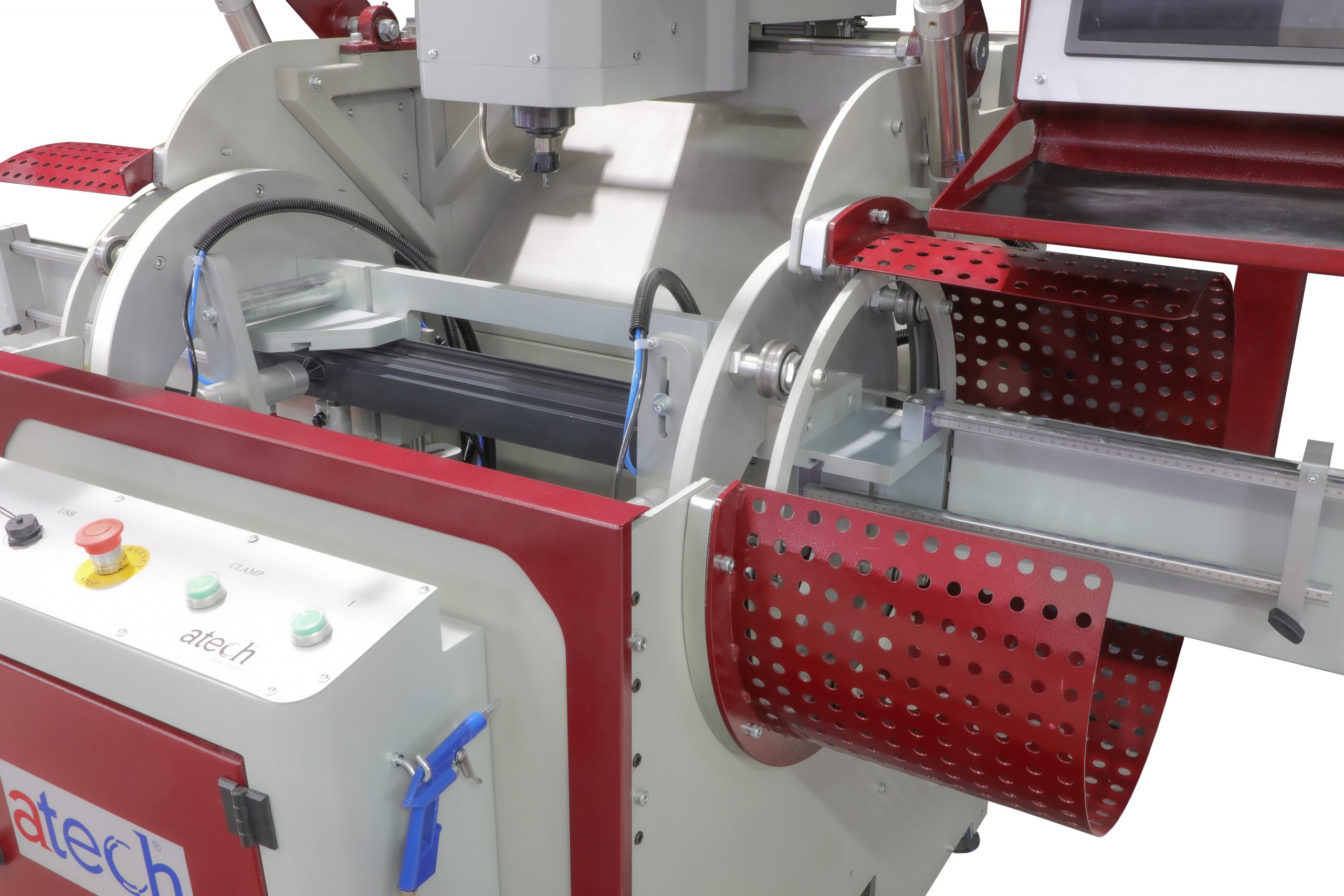

Copy routing of any kind of standard as well as custom shapes onto all four surfaces of aluminum and PVC extrusions without the necessity of a physical copy template thanks to the rotating capability of the extrusion clamping platform utilizing a CAM program.
- 6 kW, 12,000 rpm Spindle motor
- Fabricating at any angle, incl. any intermediate angles.
- 3D simulation machine interface.
- CAM program, which can be programmed and edited within itself.
- User friendly integrated CAM and machine interface.
- 10’’ Windows based Touchscreen industrial PC.
- Resistant and rigid machine body.
| Servo kW: | 4×0,75 kW |
| Spindle kW: | 1×2,6 kW |
| Saw Dimension: | D= 450 mm d= 30-32 mm |
| Power: | 12000 r.p.m |
| Capacity: | x: 360 mm / y: 130 mm / z: 130 |
| Bar/Air Cons.: | 6-8 Bar – 55 lt/min |
| Packing Size: | WxLxH (cm) 182x172x223 cm |
| Machine Size: | WxLxH (cm) 448x161x233 cm |
| Machine Kg: | 800 |
- Ø8 mm x L= 120 mm routing set
- Data transfer via Wifi and USB
- Technical Support with Remote Connection
- CAM Programe

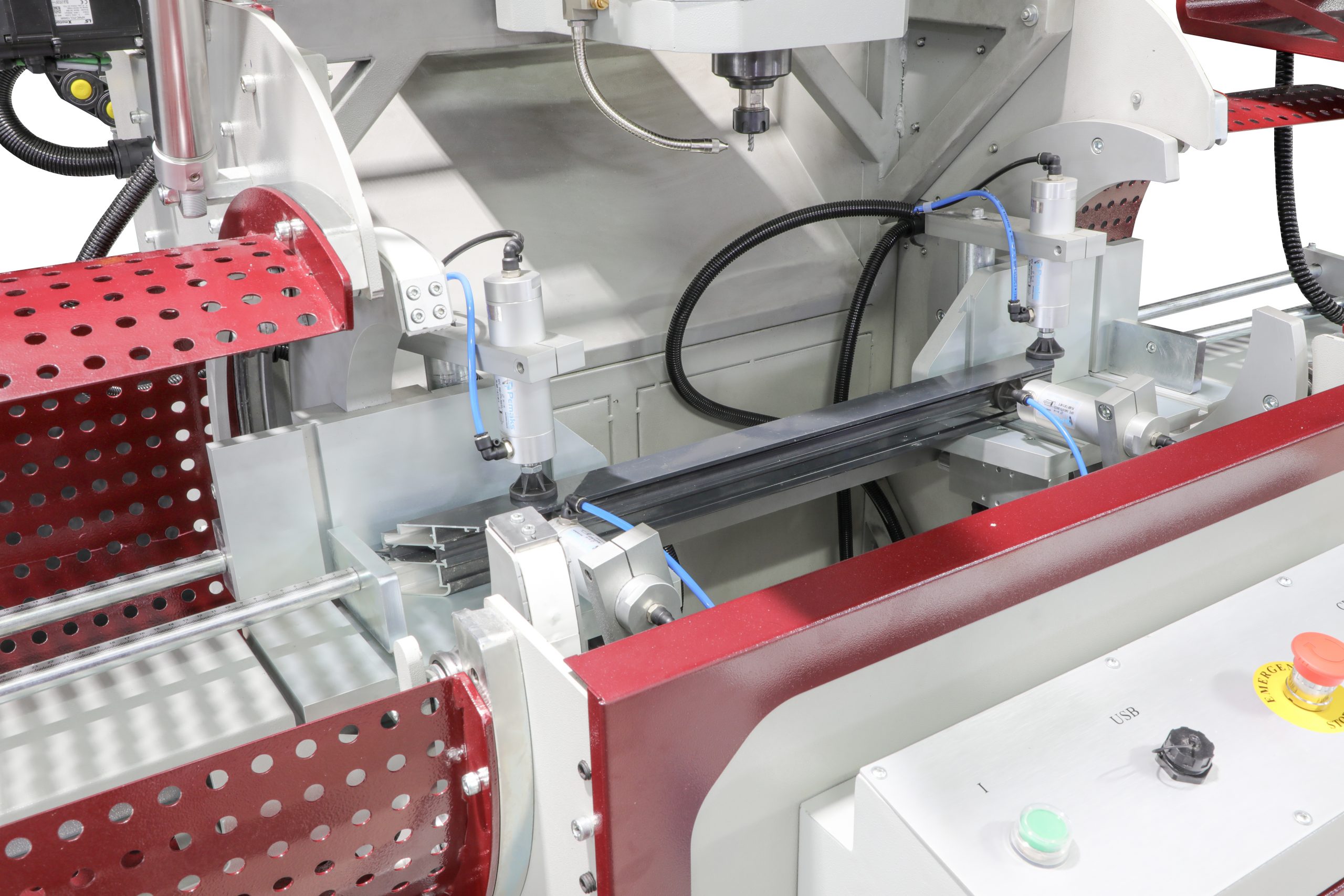

- 2 horizontal clamps
- 2 vertical clamps
- Spray mist tool cooling system
- Right and left extrusion stops
- Air gun
- Wireless barcode reader
- Additional clamps
- Clamp fixture for special extrusions
- Special router bit up to 13 mm
- Ability to work at intermediate angles
Control Panel
