Zigma-450AU
Semi-Automatic Double-Head Cutting Machine, Ø 450 mm
New Generation Zigma 450AU Dual-Head Automatic Aluminum and PVC Profile Cutting Machine
Devamını oku
Read More
İndirmeler ve kaynaklar Downloads & resources
Hızlı Yanıt
Fast Response
24 saat içinde teklif
Quote within 24 hours
Türkiye'den Dünyaya
From Turkey to the World
Türkiye üretim, global sevkiyat
Made in Turkey, shipped worldwide
- Designed to cut aluminum and PVC profiles to any desired length, both straight and at angles
- Both cutting heads can be automatically rotated to 45° and 90°, and can be manually adjusted to other angles
- The operator control panel features a touchscreen
- Thanks to the hydro-pneumatic cutting unit, cutting speed, precision, and saw stroke length can be adjusted
- It is equipped with features such as slicing, entering the number of pieces, and programming
- Capable of cutting profiles longer than the cutting length capacity
- Robust machine frame
- The linear movement of the head is provided by a rail and carriage
- The moving head is driven by a servo motor
- Chip discharge manifold
- Data transfer via USB
| Servo Motor: | 1 × 0.75 kW |
| Cutting Motor: | 2.2 kW, 3 HP, 400 V, 50/60 Hz |
| Saw Dimensions: | D=450 mm, d=30/32 mm |
| Saw: | 3,000 rpm |
| Bar / Air liters: | 6–8 bar – 100 liters/minute |
| Package Dimensions: | 528 x 140 x 200 cm |
| Machine Dimensions: | 651 x 175 x 184 cm |
| Machine Weight (kg): | 1,350 kg |

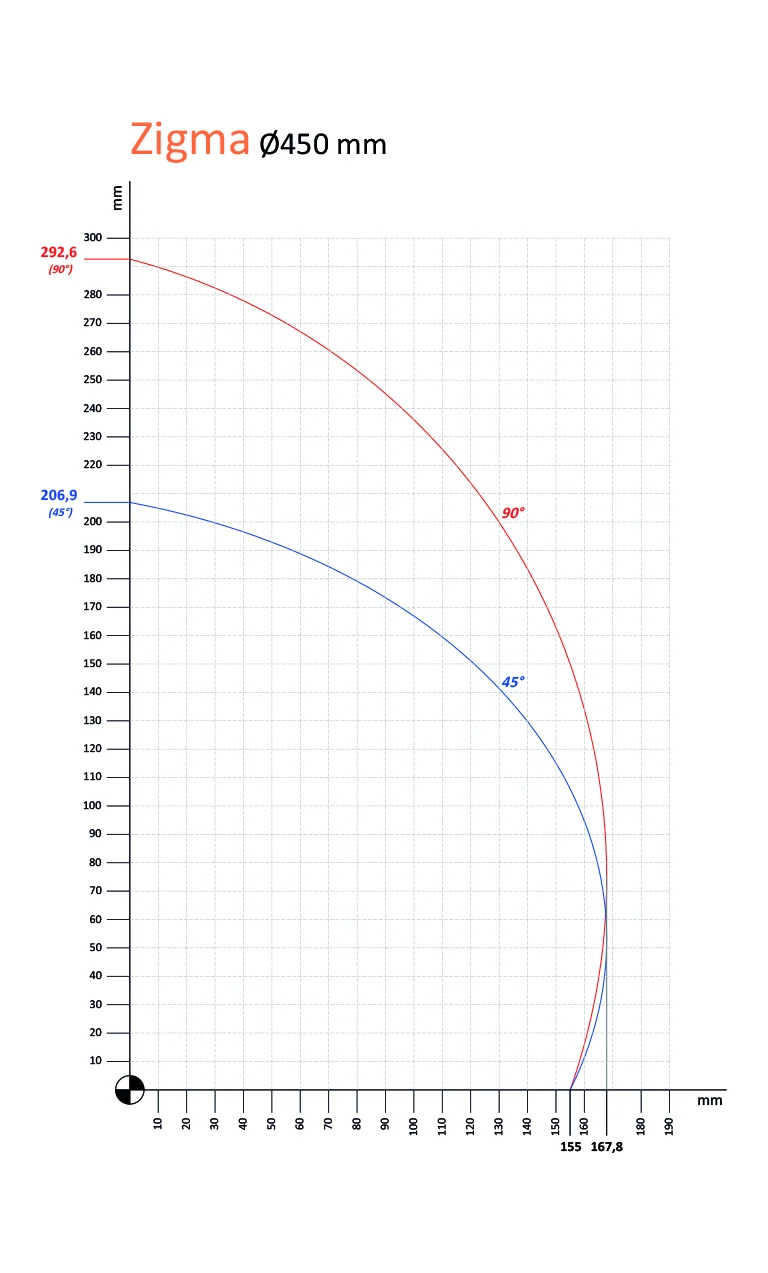

Cutting Length:
- 90° min.: 350 mm : 4,060 mm
- 45° min.: 480 mm : 4,060 mm
- 2 pcs. 450mm saws
- 2×2 front clamps
- Air gun
- Additional conveyor on the moving unit
- Profile support fixture
- Oil Spray System
- Chip collection manifold
- 3 kW electric motor
Teknik özellikler ve donanımlar önceden haber verilmeksizin değiştirilebilir. Technical specifications and features are subject to change without prior notice.
