ALUPRO-441

This is an enclosed-cabinet machine specifically designed for milling, drilling, tapping, and notching operations on all types of aluminum, PVC, and light alloy profiles. It is a 4-axis CNC-controlled machining center. It operates using the standard ISO “G” code universal programming language.

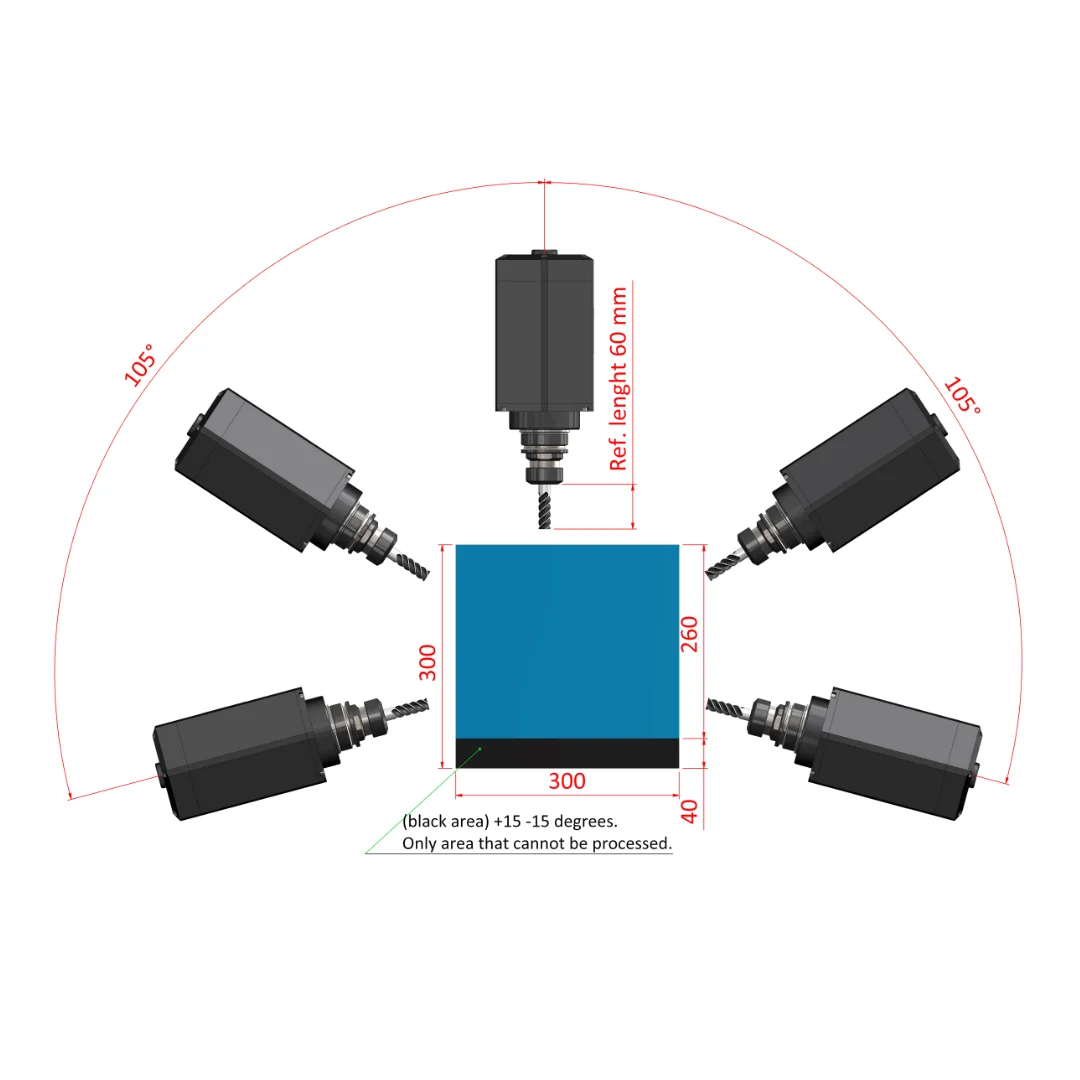

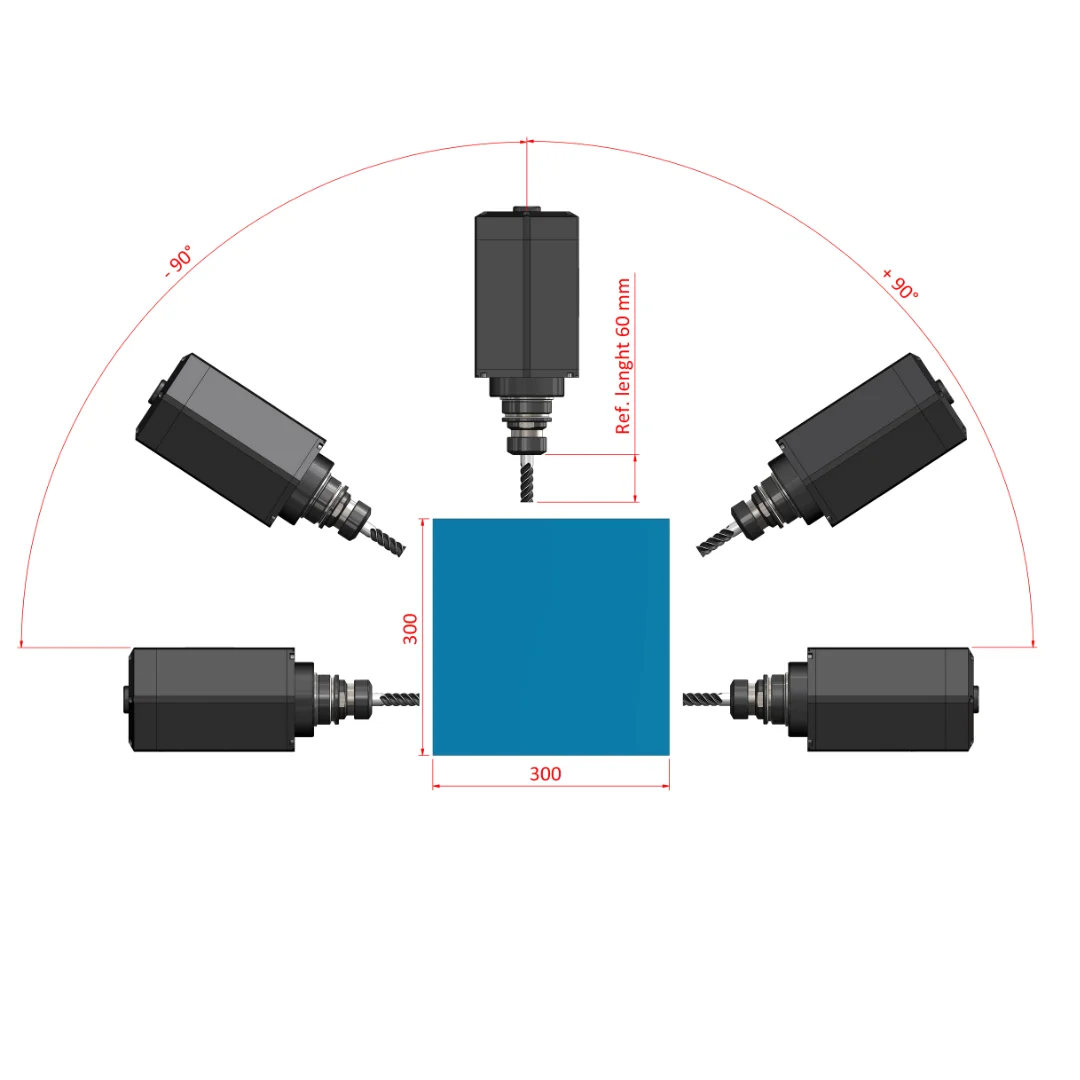

Thanks to the specialized precision mechanical equipment used, the spindle motor can rotate 180° around the profile to perform machining at the desired angle. As an option, it can perform machining at desired angles up to 230°. It has a total of 8 tool magazines.

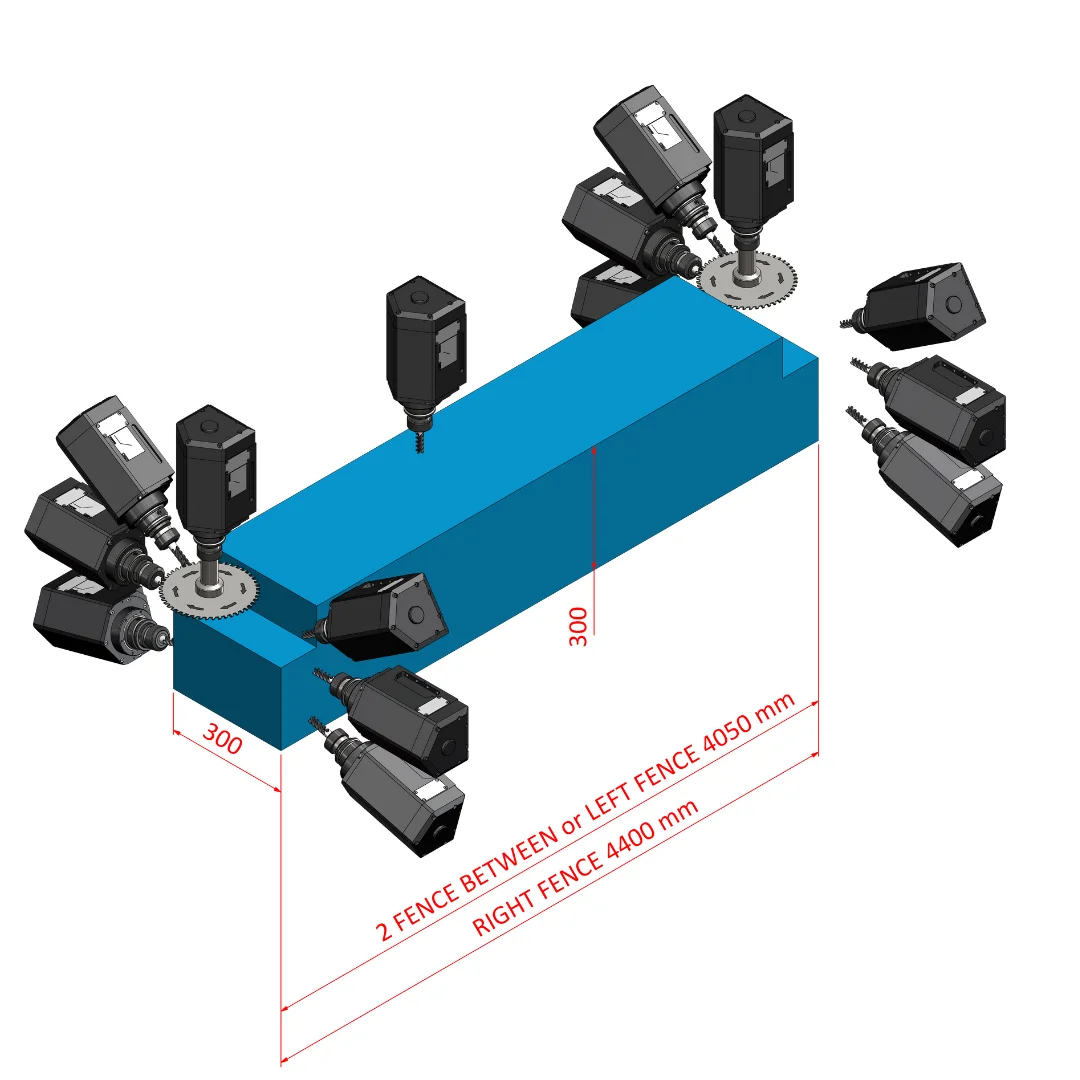

Additionally, it offers flexible machining capabilities for desired profiles thanks to a cutting blade with a maximum diameter of Ø200 mm. It has the capacity to machine three surfaces of a 300×300 mm profile. It features two powerful pneumatic support systems. It can machine a profile up to 4050 mm in length in a single pass. Thanks to the dual support system, it can machine profiles longer than the machining length. With its dual-station capability, it can machine two different profiles simultaneously.

The machine features automatic vise scanning and vise positioning. It comes standard with four vises, which can be increased to six if desired. Thanks to its professional vise design, the vises do not trap chips, and their ergonomic design minimizes processing time to maximize efficiency.

• It is designed to perform all types of operations - such as drilling holes, milling grooves, corner rounding, sawing, and threading - on three surfaces of the profiles.
• With its dual-station capability, it can process two workpieces with a single program.
• Automation system providing CNC motion in 4 axes
• An 8-tool magazine unit, including cutting tools and a 200 mm diameter saw
• Automatic vise recognition and positioning feature
• Enclosed machine cabinet
• PLC-controlled, dual-tool spray cooling unit capable of operating independently
• 4 automatic chucks used to clamp the workpiece (the number of chucks can be increased as an option)
• 2 powerful pneumatic support units used to support the workpiece in the X direction
• 21-inch Windows-based industrial touchscreen PC
• External program transfer via Wi-Fi, Ethernet, and USB flash drive
• Ability to provide technical support via remote connection
• Standard ISO ‘G’ code programming language
• Centralized automatic lubrication system for the X, Y, and Z axes
• In-cab LED lighting
